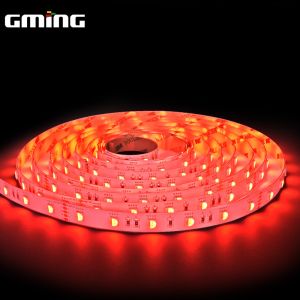

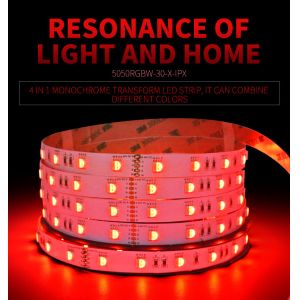

120º IP20/IP65 210lm 9W SMD3528 RGB LED Strip Light

Brand Name :

Model Number :

GM-H5050RGBWW-30-X-IPX

Certification :

CE ROHS UL

Price :

1.5-2.8USD/M

Payment Terms :

T/T, Western Union

Supply Ability :

200000M/MOUTH

Delivery Time :

3-7WORKING DAYS

120º IP20/IP65 210lm 9W SMD3528 RGB LED Strip Light

120º Bean Angel IP20/IP65 SMD RGB LED Strip Light 3 Years Warranty

Quick Details

Light Source:LED Item Type:Light Strips LED Light Source:SMD3528

Type:Flex LED Strips Input Voltage(V):DC24V Lamp Power:5.76W/FT

Lamp Luminous Flux(lm):1680lm/m CRI (Ra>):80 Color Temperature(CCT):

2200K -12000K Working Temperature(℃):-25 - 55 Working Lifetime(Hour):35000

Lamp Body Material:Copper Certification:CCC, CE, EMC, FCC, LVD, RoHS, UL

Emitting Color:Warm White Place of Origin:Guangdong, China (Mainland)

Brand Name:GM Model Number:GM-3528-60-12V

LED Quantity:60LEDs/m Beam Angle:120 Degree

PCB Width:8mm Length:5 Meters/roll Warranty:3years IP Rank:68

PCB Color:White PCB

Product Feature

HIGH CRI Series

CRI can be more than 90 which realizes color accuracy to make the lighted objects more vivid.

The following are IP rating:

IP20: Non-waterproof, available indoor.

Ip65: silicone glue or epoxy resin, can prevent the splashing water invade, available indoor.

IP67: Silicone tube, hollow, can prevent the big wave water invade; available indoor and outdoor.

IP68: Silicone tube +silicone gel or silicone extrusion molding, completely prevent dust and water invade; available indoor,outdoor and water.

Specification:

Model	GM-H5050RGBWW-30-X-IPX	GM-H5050RGBWW-48-X-IPX
Work Voltage	12/24VDC	12/24VDC
LED Qty (pcs/m)	30	48
CCT	620-630nm 520-530nm 460-463nm	620-630nm 520-530nm 460-463nm
Lumen(lm/m)	W 190-210lm WW 170-190lm	W 290-310lm WW 270-300lm
Ra	80+	80+
Max Power	9W	14.4W
IP Rate	IP20	IP20
Warranty	3 Years	3 Years
pcb Width	W=12mm	W=12mm
PCB Thickness	3Oz	3Oz

120º IP20/IP65 210lm 9W SMD3528 RGB LED Strip Light

FAQ

1) What are the best selling products in SHINESKY?

RGBW Series/Efficiency Series/Super Length Series/CCT Dual White Series/Aluminium Profiles

2)Can SHINESKY offer OEM product?

Sure, led strips can have different size, layout, customer logos and labels. Design and samples

should be confirmed firstly.

3)What is SHINESKY lead time?

Normally we ship orders in 3-10 Days, but it will take a little longer if with heavy burden of production and customized products.

4) Do you have warranty for products?

Sure, we have 3 and 5 years warranty for different products. Once quality issues and certified by SHINESKY engineers, we would replace new items with freight paid by us.

China factory direct price high cri 3528 60leds ultra thin smd led strip light

Product Description

1.Our SMD LED use copper base and gold wire which provide good heat dispersion, long life span and low Luminous Decay.

2.Our flexible PCB are all high quality double layers PCB, at least 2 ounces, or 3 ounces in particular models.

3.We always require same bin number SMD LEDs for different production batches for the same customer.

4.We have Everfine integrating sphere to test the color temperature of incoming SMD LEDs and put it in our QC records for every batch. Normally 5 MacAdam LED is +/-100k

5.We can produce 3 MacAdam LED Strip/tape as customer request.

Shenzhen Bright Lighting Co. , Ltd. was established in 2013, is a professional development of leading photoelectric products, production and sales of leading high-tech enterprises. At present, we have more than 80 employees, more than 3000 square meters of plant area, with advanced modern professional production equipment and testing equipment, technology to the advanced level of similar products. It is one of the largest manufacturers of LED single exposed light, LED modules and LED light strips.

The company's products are sold all over the world, including Europe, Asia, the United States and so on. Has developed own advertisement bar lamp, LED lamp, LED Bulb Lamp, LED downlink lamp and so on.

Adhering to the“High-quality, high-efficiency, high-quality, professional” business philosophy, the production of high-quality products, show efficient management, provide quality services, build a professional team. The purpose of the company is to provide services to customers and suppliers

Your satisfaction is our infinite power, your recognition is our quality improvement.
